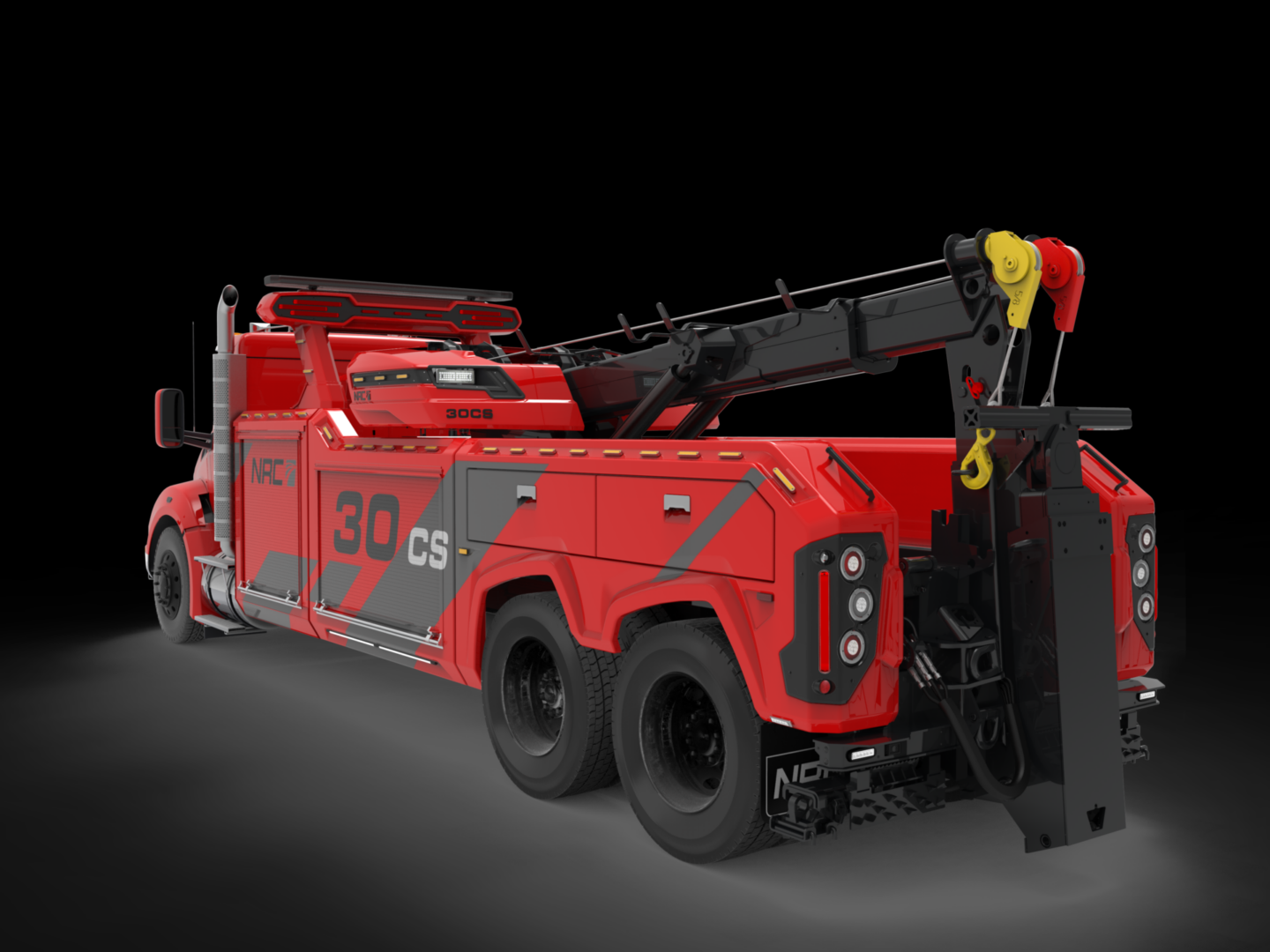

30CS

A futuristic red emergency rescue vehicle with six wheels and crane equipment.

WRECKER SPECIFICATIONS

  • Capacity: 30 Tons
  • Working hydraulic pressure 3000 PSI
  • Composite body 101.5'' wide (including fenders)
  • 146" CLA (from cab to center of rearmost axle)

BOOM SPECIFICATIONS

  • Two stage boom: Standard
  • "V" shape boom: Standard
  • Boom structural rating fully retracted: 60,000 lbs
  • Boom structural rating fully extended: 25,000 lbs
  • Reach past tailgate fully extended : 169"
  • Maximum Boom working height : 300"
  • Boom range of elevation: 63°
  • 360° sheave head

WINCHES & STEEL WIRE ROPE

  • Dual 30,000 lbs planetary winches
  • Wire rope: 5/8” x 200’
  • Air tensioners
  • Air free spools
  • 2 speed
Learn More At NRC-industries.com
Heavy-duty trucks and equipment ready for action at a logistics hub.
Image showing technical specifications and features of a race car combined with branding.

40CS

A crane truck lifting equipment in a field under a blue sky.

WRECKER SPECIFICATIONS

  • Capacity: 40 Tons
  • Working hydraulic pressure 3000 PSI
  • Composite body 101.5'' wide (including fenders)
  • 183" CLA (from cab to center of rearmost axle)
  • Tri-axle body: 200" CLA (from cab to center of rearmost axle)

BOOM SPECIFICATIONS

  • Two stage boom: Standard
  • Three stage boom: Option
  • "V" shape boom: Standard
  • Boom structural rating fully retracted: 80,000 lbs
  • Boom structural rating fully extended (2 stage): 30,000 lbs
  • Boom structural rating fully extended (3 stage): 15,000 lbs
  • Reach past tailgate (3rd stage) : 281"
  • Maximum Boom working height (3rd stage) : 404"
  • Range of elevation : 0° - 60°
  • 360° sheave head

WINCHES & STEEL WIRE ROPE

  • Dual 40,000 lbs planetary winches-Two speed
  • Wire rope: 3/4" x 200'
  • Air tensioners
  • Air free spools
  • 2 speed
  • Optional: 2 planetary 15,000 lbs auxiliary winches under the boom
Learn More At NRC-industries.com
Military vehicle with a large mounted crane at sunset.
A detailed informational brochure about the Patriot missile system and its specifications.

50CS

A large white tow truck parked on a road under a cloudy sky.

WRECKER SPECIFICATIONS

  • Capacity: 50 Tons
  • Working hydraulic pressure 3000 PSI
  • Composite body 101.5'' wide (including fenders)
  • 183" C.A. (from cab to center of rearmost axle)
  • CLA for Tri-axle body: 200" (from cab to center of rearmost axle)

BOOM SPECIFICATIONS

  • Two stage boom: Standard
  • Three stage boom: Option
  • "V" shape boom: Standard
  • Boom structural rating fully retracted: 100,000 lbs
  • Boom structural rating fully extended (2 stage): 40,000 lbs
  • Boom structural rating fully extended (3 stage): 20,000 lbs
  • Reach past tailgate (3rd stage) : 281"
  • Maximum Boom working height (3rd stage) : 411"
  • Boom range of elevation: 60°
  • 360° sheave head

WINCHES & STEEL WIRE ROPE

  • Dual 50,000 lbs planetary winches
  • Wire rope: 7/8" x 200'
  • Air tensioners
  • Air free spool
  • 2 speed
  • Optional: 2 planetary 20,000 lbs auxiliary winches under the boom
Learn More At NRC-industries.com
A large white semi-truck driving on a highway under a cloudy sky.
Military vehicle and missiles on display with informational text about NROC capabilities.

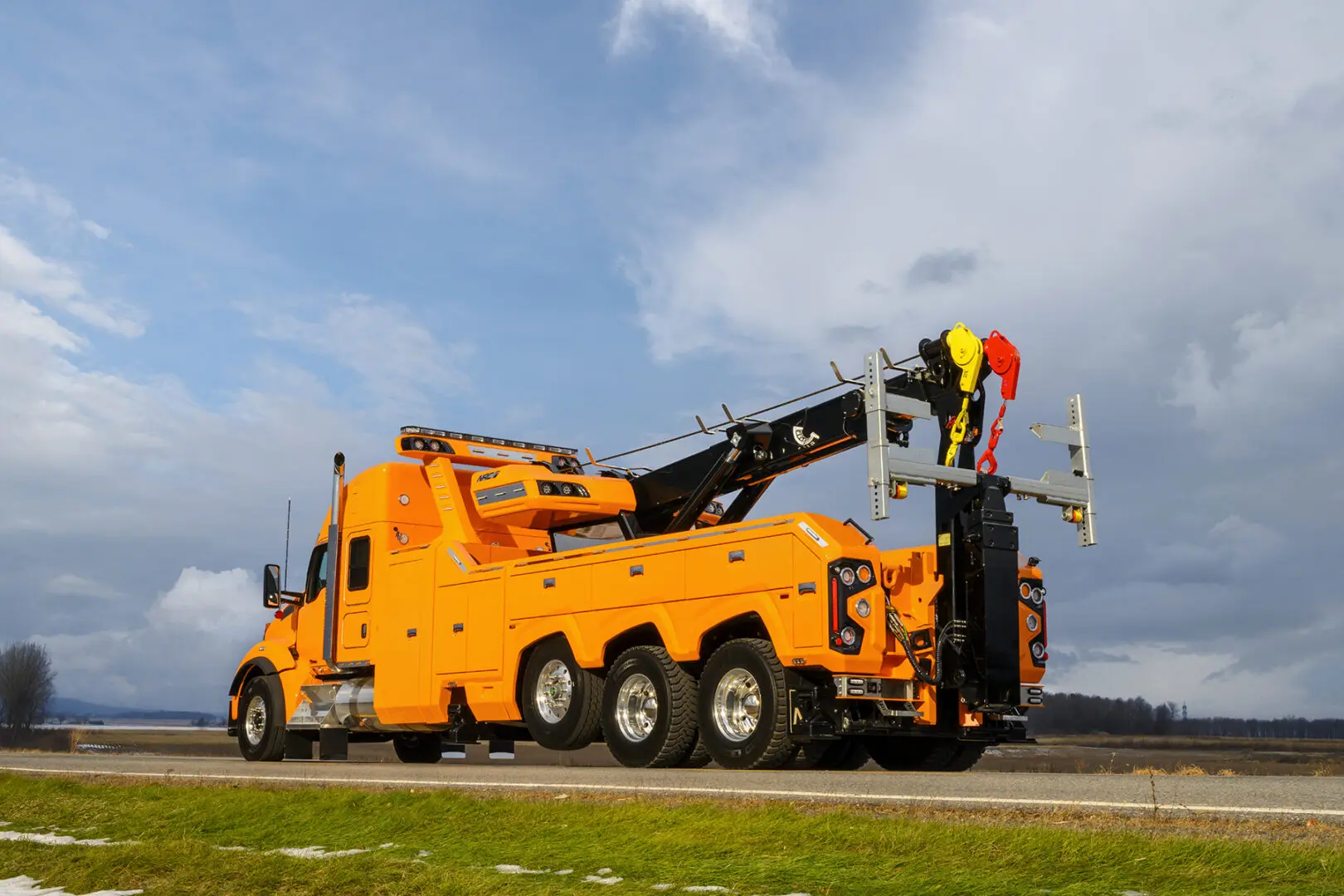

CSR50

Large orange heavy-duty tow truck with equipment on top.

WRECKER SPECIFICATIONS

  • Capacity: 50 Tons
  • Safe lifting capacity: 40 Tons (25% security factor)
  • Working hydraulic pressure: 3000 PSI
  • Composite body 101.5'' wide (including fenders)
  • 190" CLA (from cab to center of rearmost axle)

BOOM SPECIFICATIONS

  • Two stage boom: standard
  • Three stage boom: option
  • "V" shape boom
  • Boom structural rating fully retracted: 100,000 lbs
  • Boom structural rating fully extended (2 stage): 40,000 lbs
  • Boom structural rating fully extended (3 stage): 20,000 lbs
  • Reach past tailgate (3rd stage) : 285"
  • Maximum Boom working height (3rd stage) : 431"
  • Boom range of elevation: 65 (degree)
  • 360 (degree) sheave head
  • D-rings on each boom section

WINCHES & STEEL WIRE ROPE

  • Dual 40,000 lbs planetary winches
  • Wire rope: 3/4" x 200'
  • Air tensioners
  • Air free spool
  • 2 speed
  • Optional: 2 planetary 15,000 lbs auxiliary winches under the boom
  • Optional: 2 planetary 20,000 lbs auxiliary winches under the boom
Learn More At NRC-industries.com
Workers operate atop a large orange CSAR50 vehicle under a cloudy sky.
Brochure showcasing the NRC SR50 tracked tow tractor with specifications and images.

CSR65

Heavy-duty tow truck lifting a vehicle during sunset.

WRECKER SPECIFICATIONS

  • Capacity: 65 Tons
  • Safe lifting capacity: 50 Tons(25% security factor)
  • Working hydraulic pressure: 3500 PSI
  • Composite body 101.5'' wide (including fenders)
  • Minimum CLA for tandem and tri-axle body: 246" (from cab to center of rearmost axle)

BOOM SPECIFICATIONS

  • Two stage boom: standard
  • Three stage boom: option
  • "V" shape boom
  • Boom structural rating fully retracted: 130,000 lbs
  • Boom structural rating fully extended (2 stage): 50,000 lbs
  • Boom structural rating fully extended (3 stage): 25,000 lbs
  • Reach past tailgate (3rd stage) : 367"
  • Maximum Boom working height (3rd stage) : 530"
  • Boom range of elevation: 0-73°
  • 360° sheave head
  • D-rings on each boom section

WINCHES & STEEL WIRE ROPE

  • Dual 50,000 lbs planetary winches
  • Wire rope: 7/8" x 200'
  • Air tensioners
  • Air free spool
  • 2 speed
  • Optional: 2 planetary 20,000 lbs auxiliary winches under the boom
Learn More At NRC-industries.com
A heavy-duty CSR65 tow truck on a curved road at sunset.
A detailed infographic showcasing the features and benefits of the NRC SR65 truck model.

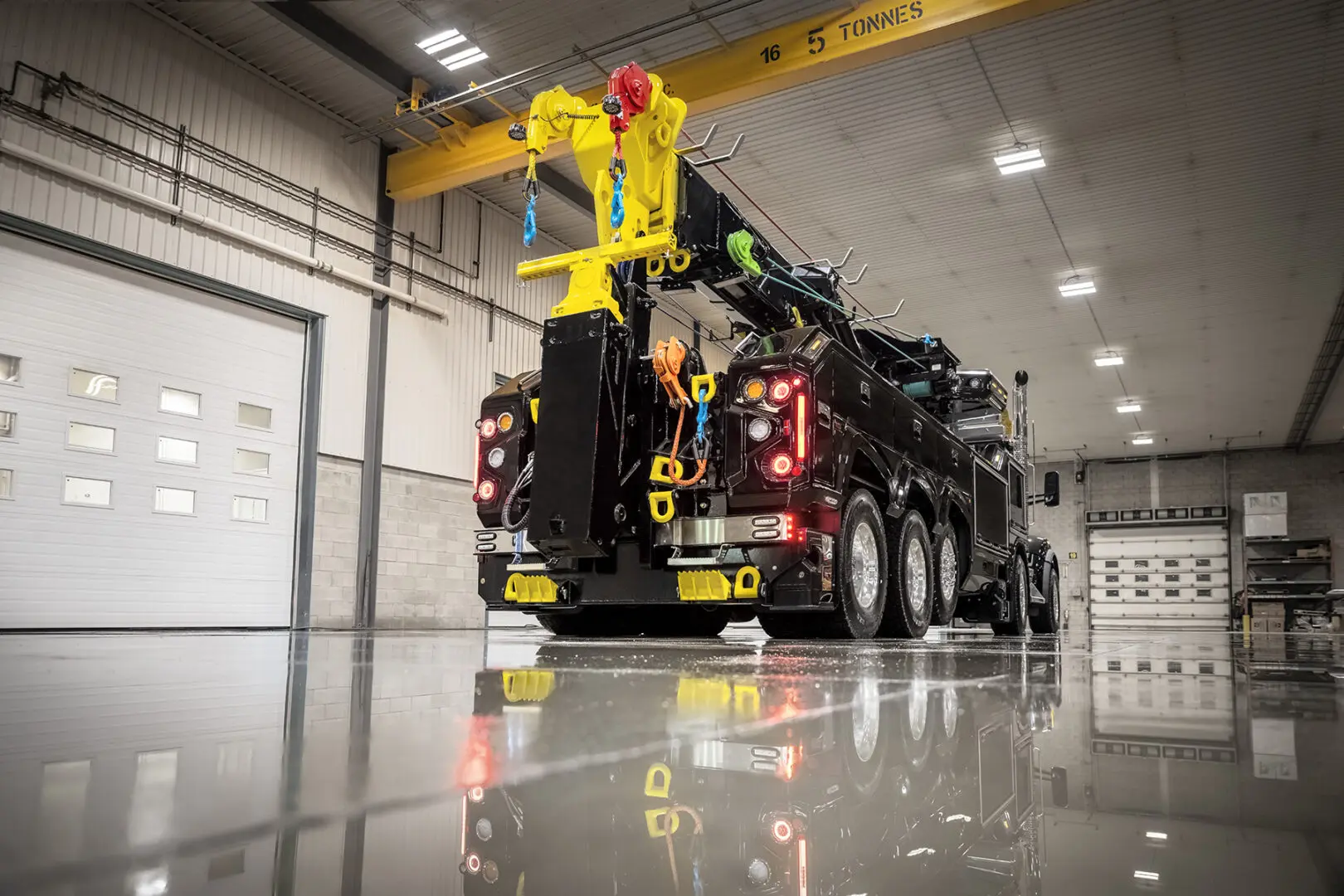

CSR85

A large utility truck with a yellow crane attachment inside a warehouse.

WRECKER SPECIFICATIONS

  • Capacity: 85 Tons
  • Safe lifting capacity: 60 Tons (25% security factor)
  • Working hydraulic pressure: 3000 PSI
  • Composite body 101.5'' wide (including fenders)
  • 190" CLA (from cab to center of rearmost axle)

BOOM SPECIFICATIONS

  • Two stage boom: standard
  • Three stage boom: option
  • "V" shape boom
  • Boom structural rating fully retracted: 100,000 lbs
  • Boom structural rating fully extended (2 stage): 40,000 lbs
  • Boom structural rating fully extended (3 stage): 20,000 lbs
  • Reach past tailgate (3rd stage) : 285"
  • Maximum Boom working height (3rd stage) : 431"
  • Boom range of elevation: 65 (degree)
  • 360 (degree) sheave head
  • D-rings on each boom section

WINCHES & STEEL WIRE ROPE

  • Dual 40,000 lbs planetary winches
  • Wire rope: 3/4" x 200'
  • Air tensioners
  • Air free spool
  • 2 speed
  • Optional: 2 planetary 15,000 lbs auxiliary winches under the boom
  • Optional: 2 planetary 20,000 lbs auxiliary winches under the boom
Learn More At NRC-industries.com
A large black heavy-duty truck in a warehouse setting.
